Water Jar Making Machine, One Step PET Blow Molding Machine,
Plastic Bottle Manufacturing Machine Price
One Step PET Blow Molding Machine is the Most Ideal Solution for
Hollow Blow Molding Products
The core component of the one-step injection (stretch) blowing
process is a triangular turntable, which rotates at 120 degrees,
and the mandrel is installed on the end surface of the turntable.
- Station 1 THE FIRST SERVICE POSITION
The plastic melt is injected into the parison under low injection
pressure, and the neck of the bottle is precisely shaped. After
proper control, the mold is opened and the mandrel and parison are
transferred to
- Station 2 THE SECOND SERVICE POSITION
Blow molding is completed in this cavity by cooling and forming
station. (The mold cavity determines the shape and appearance of
the bottle). The parison is inflated by the air coming out of the
mandrel and close to the mold. Then, the mold is opened and the
mandrel and the parison are transferred together
- Station 3 THE THIRD SERVICE POSITION

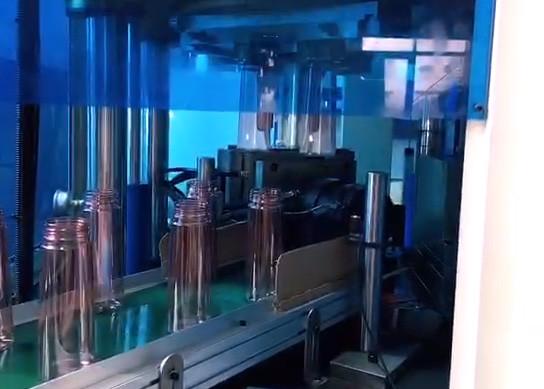

Demoulding is completed at this station, and then packaging or
filling is carried out through the assembly line. The three actions
of injection, blow molding and demoulding are carried out at the
same time, which is highly efficient and energy-saving. Note: The
four-station injection, stretching, blow molding and demolding
actions of the injection-blow stretch machine are carried out
simultaneously. The core component is a four-corner turntable,
which rotates at 90 degrees. Compared with the three-station, the
four-station has one more stretching station Bit.
Data Sheet of JASU Blow Molding Machine (ISBM machine)
| Item | Unit | Machine Type |
| ISB 1100N-3 |
| Injection Part | Screw Diameter | mm | 40 |
| Screw L/D Ratio | L/D | 20.5:1 |
| Screw Speed | r/min | 0-190 |
| Theoretical Injection Capacity | cm3 | 238 |
| Injection Pressure | MPa | 174 |
| Max. Hydraulic Pressure | Kg/cm | 140 |
| The Actual Injection Quantity | g(ps) | 225 |
| Oz | 8 |
| Screw Stroke | mm | 190 |
| Clamping Part | Blow Clamping Force | KN | 150 |
| Clamp Tonnage | KN | 600 |
| Wheel Diameter | mm | 1100 |
| Max. Height | PP, PET, PETG, Tritan, PS, PC | mm | 200 |
| PC, PETG, Tritan, PS | mm | 220 |
| Open Vertical Mode Trip | mm | 570 |
| Others | Max. Pump Pressure | MPa | 16 |
| Servo Motor | Kw | 22 |
| Mode Opening/Locking Motor (Double Pump) | Kw | 22 |
| Electric Power | Kw | 8.9 |
| Tank Volume | L | 420 |
| Dimension of Machine | m | 4.5*1.95*3.4 |
| Machine Weight | T | 8.5 |
--Parameters are subject to change without prior notice.
--Providing PC, PET, PP, PS, PETG, TRITAN screw barrels according
to customers' requirements. |
One step PET blow molding machine is widely used for various
plastic materials and has broad application prospects
A large range of refined and essential designed platic blow molded
bottles and jars are available from size 10ml to 2500ml.
Rigid food containers and PET preforms: carbonated drinks,
alcoholic beverages, liquid detergents, body lotions, prescription
drugs, cosmetics and private care
Households : households and detergent bottles, laundry bottles,
liquid soap plastic bottles containers and lotion bottles
Pharmaceutical / cosmetics : pharmaceutical, health care, personal
care and cosmetic bottles
Consumer goods containers (detergent, dishwashing soap, hand
lotion, etc.)
JASU is the first PET Bottle Machine Manufacturers of Single Stage
PET Blowing Machine
Absorbed the advanced technology from Japan and Germany.
Manufacturer/Direct Factory with production base takes 24000m2.
Own highly qualified technical staffs (20-30 persons) and R/D
center.
Obtained a number of technical patents.
Overseas sales increase 33% annually.
Market network throughout the country , and export to many
countries of East Europe, South America, South Africa etc.
Our machine enjoyed high reputation among customers.
Service technicians (holding visa and passport) are on call and
able to serve on site and instruct via voice and videos.
Mould and tooling, we have our own mold-making facility and mould
workshop ourselves, advanced CNC machine and smart design engineers.
We can treat different materials and sizes of products.
Auxiliary machine,we will equip you with the necessary quality
auxiliary machines to ensure the production plan running well.
Provide one-stop service.
Question & Answer
Q1: Are you a factory or trading company?
A1: We are established in 2003, a actual factory and manufacturer
in the line of injection blow molding machine for 18 years.
Q2: Where is your factory located? How can I visit you?
A2: Our factory is located in Panyu District, Guangzhou, Guangdong
Province, China, about 48 minutes by high-speed railway from Hong
Kong.
5 minutes driving away from Shiqiao subway station.
We can book hotel for you and pick you up from CAN BAIYUN airport
or Guangzhou south railway station.
Q3: How about the payment term?
A3: Advancement (subject to our marketing strategy and both
parties' discussion) and settle the balance payment prior to
delivery.
Q4: What about your main market?
A4: Our machines were sold well in China, also exported and enjoyed
a good reputation among customers from Europe, Russia, Southeast
Asia, Middle and South America, Africa etc.
Our customers widely spread over Russia, Italy, Poland, Turkey,
Netherlands, Sweden, Bulgaria, Brazil, Ecuador, Thailand, India,
Myanmar, Malaysia, Vietnam, Cambodia, Egypt, Algeria, South Africa,
Ivory Coast, Philippines, Bangladesh......
Q5: How does your factory do regarding quality?
A5: Quality is the most important principle. JASU people always
attach great importance to quality controlling from the very
beginning to the very end. Our factory has passed ISO and CE
certification. Patents and many other certificates obtained also
tells this.
Q6: What about warranty and do the engineers available to overseas?
A6: One year warranty. During this period, if you need any support
on installation, adjustment , operation or maintenance, our
engineers can go abroad to fix for you.
Q7: Others?
A7: We will request the working voltage and power frequency at the
buyer's side upon placing the order.
- Each order will be fulfilled as a turn key project of machine.
- We will check and test the machine and send the video to the
customer for reference prior the delivery.
- Attache/send an operational manual in English version with the
shipment.
- To use the machine only need to connect power and connect to the
air supply and water supply according to the manual or video
instructions if requested.
- Service technicians are on call to instruct via voice and videos.
They all hold visa and passport and be able to serve on site.
Contact us for PET Bottle Manufacturing Machine Cost
