Water Bottle Manufacturing Machine, Fully Automatic Blowing Machine
Manufacturer, ISBM Machine
Why fully automatic blowing machine / ISBM machine
Fully automatic control, easy to operate; realize no human hand
contact in the production process of the product, to ensure that
the product is clean and hygienic.
Perform higher speed, automatic producing and no flash or
trimmings.
Lower investment cost for equivalent output.
This high-volume machine can produce bottles with multiple cavities
at once.
The one step method was preferred by jar supplier and empty bottle
supplier because the entire molding process is done with only 1
machine.
The two step method requires 2 machines, one to make the preform
and another one to process it, requiring more energy to operate.
Low risk on the mold development and testing with single machine
purchase.
The mold design adopts the method of common mold base. Only by
changing a few mold parts, the product's shape, weight, or even the
length can be changed.
Datum of Injection Stretch Blow Molding Machine / fully automatic blowing machine / ISBM machine
| Item | Unit | Machine Type |
| ISB 1100AN-3 |
| Injection Part | Screw Diameter | mm | 50 |
| Screw L/D Ratio | L/D | 24:1 |
| Screw Speed | r/min | 0-150 |
| Theoretical Injection Capacity | cm3 | 481 |
| Injection Pressure | MPa | 176 |
| Max. Hydraulic Pressure | Kg/cm | 140 |
| The Actual Injection Quantity | g(ps) | 452 |
| Oz | 16 |
| Screw Stroke | mm | 245 |
| Clamping Part | Blow Clamping Force | KN | 150 |
| Clamp Tonnage | KN | 600 |
| Wheel Diameter | mm | 1100 |
| Max. Height | PP, PET, PETG, Tritan, PS, PC | mm | 200 |
| PC, PETG, Tritan, PS | mm | 220 |
| Open Vertical Mode Trip | mm | 570 |
| Others | Max. Pump Pressure | MPa | 16 |
| Servo Motor | Kw | 22 |
| Mode Opening/Locking Motor (Double Pump) | Kw | 22 |
| Electric Power | Kw | 12.2 |
| Tank Volume | L | 420 |
| Dimension of Machine | m | 4.5*1.95*3.4 |
| Machine Weight | T | 9 |
--Parameters are subject to change without prior notice.
--Providing PC, PET, PP, PS, PETG, TRITAN screw barrels according
to customers' requirements. |
Fully automatic blowing machine / ISBM machine is widely used for
various plastic materials and has broad application prospects

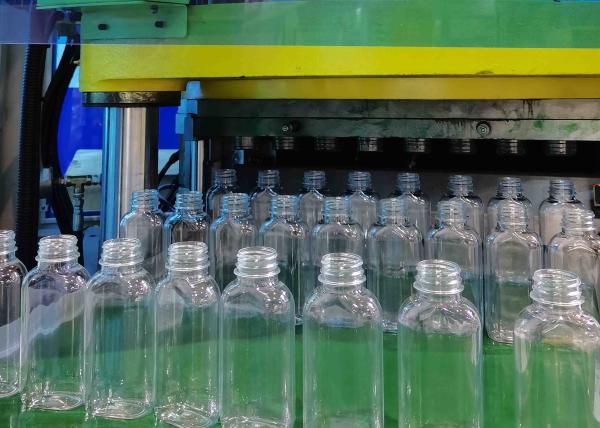

This machine is widely uesd for making lots of plastic bottles.
Suitable material inlcudeds PET, PETG, PC, PCTG, Tritan, SK etc.
Products are widely used in medicine, health care products,
cosmetics, food and other industries packaging.
Container, bottles, packages and many other hollow plastic products
such as jar, can, tin, pot, kettle, cruet etc.
Pharmaceuticals: syrup bottles, eye drops bottles, pills bottles,
oral liquid bottles, intravenous drip bottles, medicine bottle,
intravenous drip bottles etc.
Why JASU Precision Machinery?
We are THE FIRST to manufacture One Stage Injection Stretch Blow Molding Machine in China on basis of digestion and absorption of the advanced technology from
Japan and Germany.
Manufacturer/Direct Factory with production base takes 24000m2.
Own highly qualified technical staffs (20-30 persons) and R/D
center.
Obtained a number of technical patents.
Market network throughout the country , and export to many
countries of East Europe, South America, South Africa etc.
Our machine enjoyed high reputation among customers.
Overseas sales increase 33% annually.
Service technicians (holding visa and passport) are on call and
able to serve on site and instruct via voice and videos.
Question & Answer
Q1: Are you a factory or trading company?
A1: We are established in 2003, a actual factory and manufacturer
in the line of injection blow molding machine for 18 years.
Q2: Where is your factory located? How can I visit you?
A2: Our factory is located in Panyu District, Guangzhou, Guangdong
Province, China, about 48 minutes by high-speed railway from Hong
Kong.
5 minutes driving away from Shiqiao subway station.
We can book hotel for you and pick you up from CAN BAIYUN airport
or Guangzhou south railway station.
Q3: How about the payment term?
A3: Advancement (subject to our marketing strategy and both
parties' discussion) and settle the balance payment prior to
delivery.
Q4: What about your main market?
A4: Our machines were sold well in China, also exported and enjoyed
a good reputation among customers from Europe, Russia, Southeast
Asia, Middle and South America, Africa etc.
Our customers widely spread over Russia, Italy, Poland, Turkey,
Netherlands, Sweden, Bulgaria, Brazil, Ecuador, Thailand, India,
Myanmar, Malaysia, Vietnam, Cambodia, Egypt, Algeria, South Africa,
Ivory Coast, Philippines, Bangladesh......
Q5: How does your factory do regarding quality?
A5: Quality is the most important principle. JASU people always
attach great importance to quality controlling from the very
beginning to the very end. Our factory has passed ISO and CE
certification. Patents and many other certificates obtained also
tells this.
Q6: What about warranty and do the engineers available to overseas?
A6: One year warranty. During this period, if you need any support
on installation, adjustment , operation or maintenance, our
engineers can go abroad to fix for you.
Q7: Others?
A7: We will request the working voltage and power frequency at the
buyer's side when he placing the order.
Each order will be fulfilled as a turn key project of machine.
- We will check and test the machine and send the video to the
customer for reference prior the delivery.
- Attache/send an operational manual in English version with the
shipment.
- To use the machine only need to connect power and connect to the
air supply and water supply according to the manual or video
instructions if requested.
- Service technicians are on call to instruct via voice and videos.
They all hold visa and passport and be able to serve on site.
HMI touch screen, integrated with PLC system easy to maintain.
